Gearing

For 22" diameter rear tires, the WF1 is fitted from the factory with a 16 tooth front sprocket and a 46 tooth rear sprocket. A wide range of gearing options are available to adjust your car appropriately for the track you're competing at. Rear sprockets are available from 44-50 teeth, while front sprockets are available from 14-18 teeth (engine-dependent).

Note: 1 tooth on the front is equivalent to approximately 3 teeth on the rear.



Gearing selection process

[TBD]

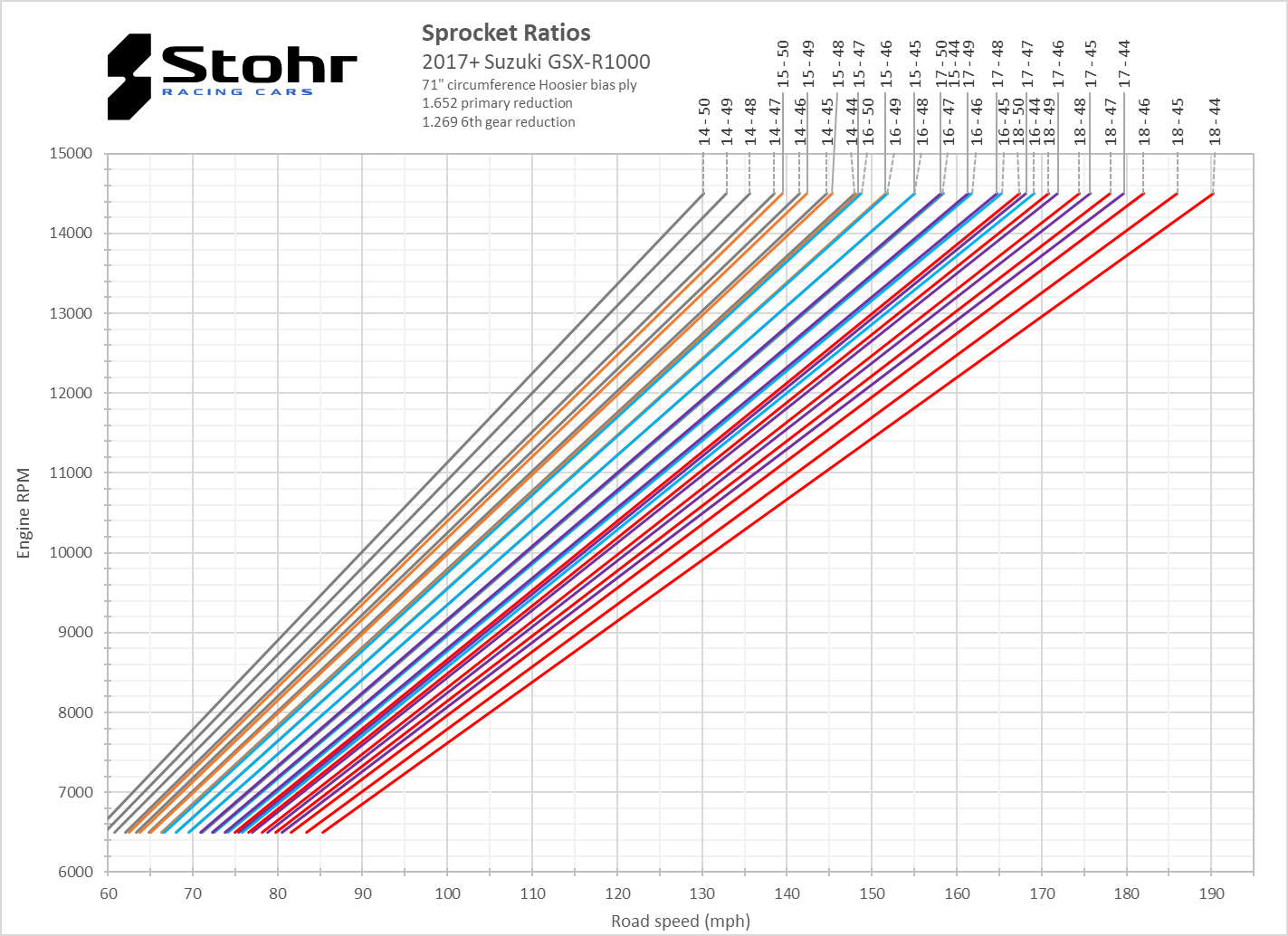

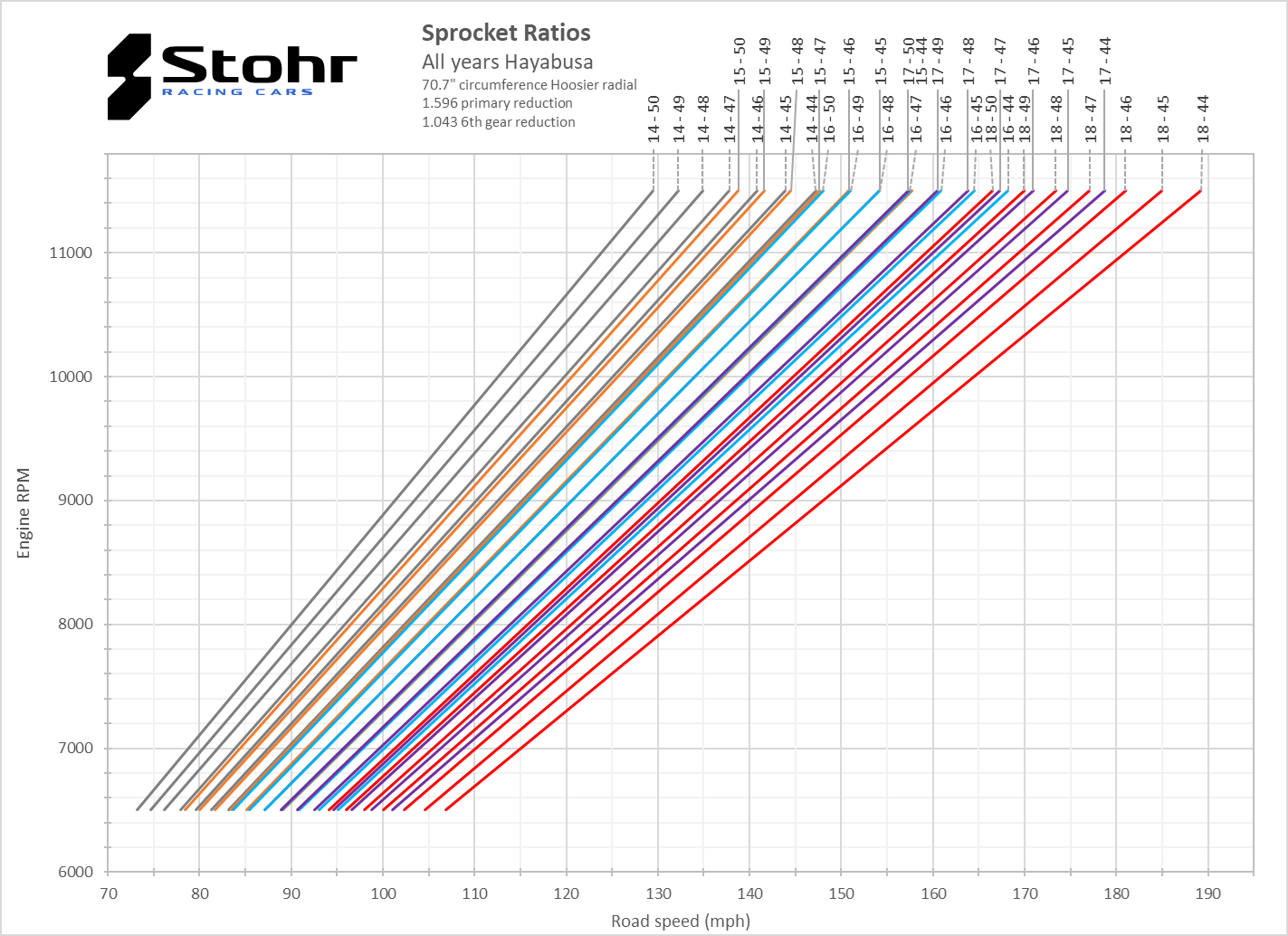

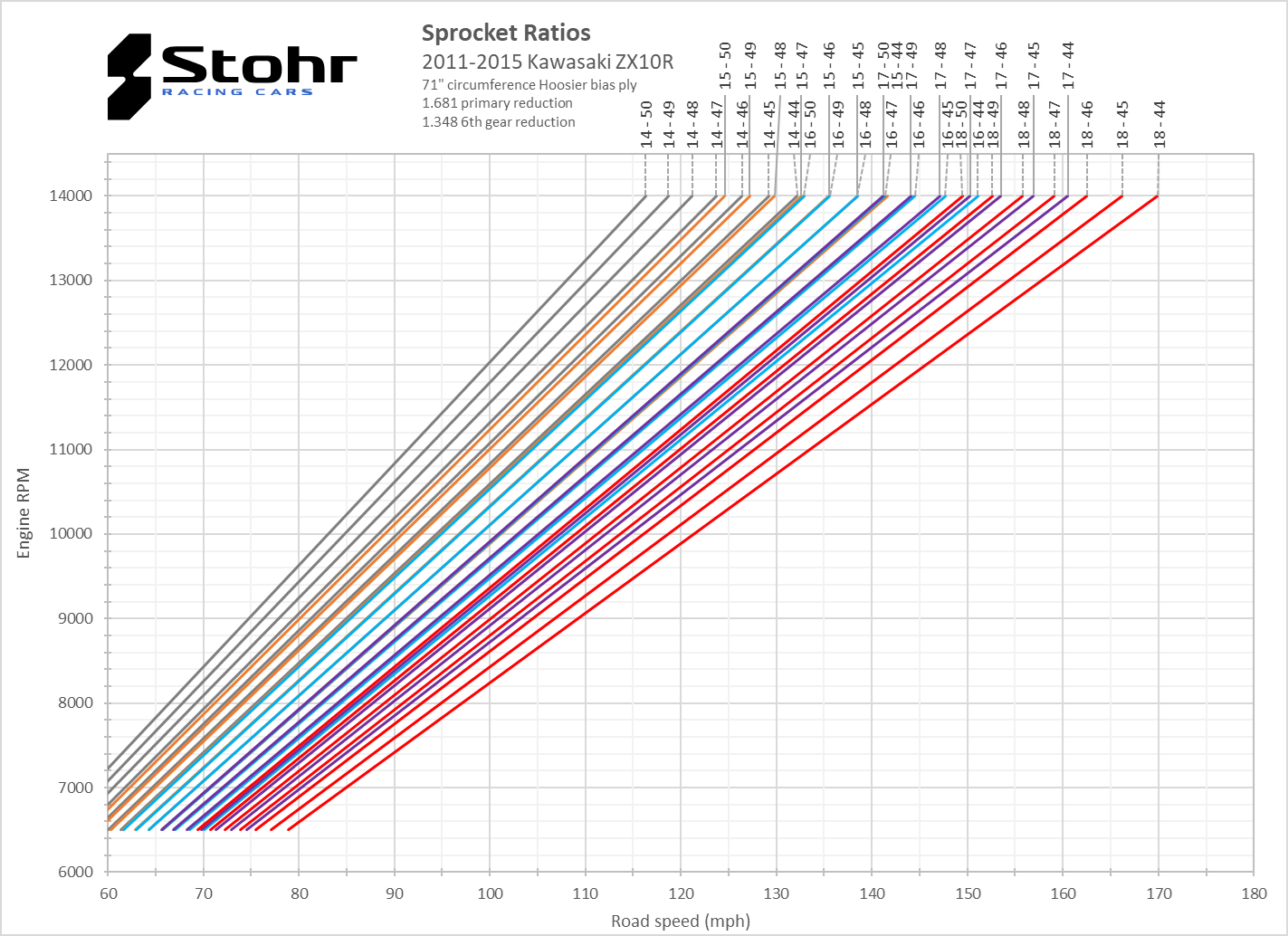

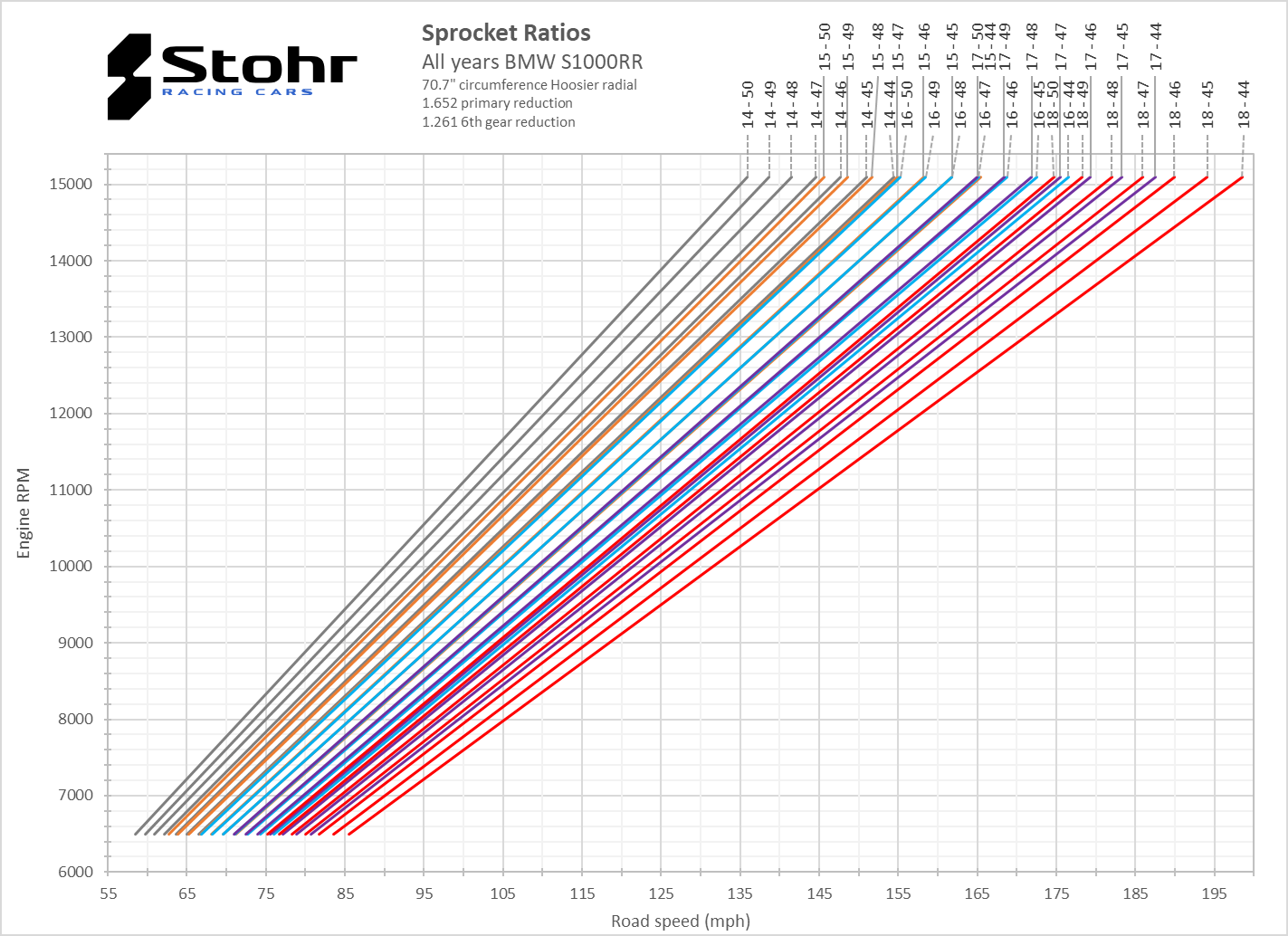

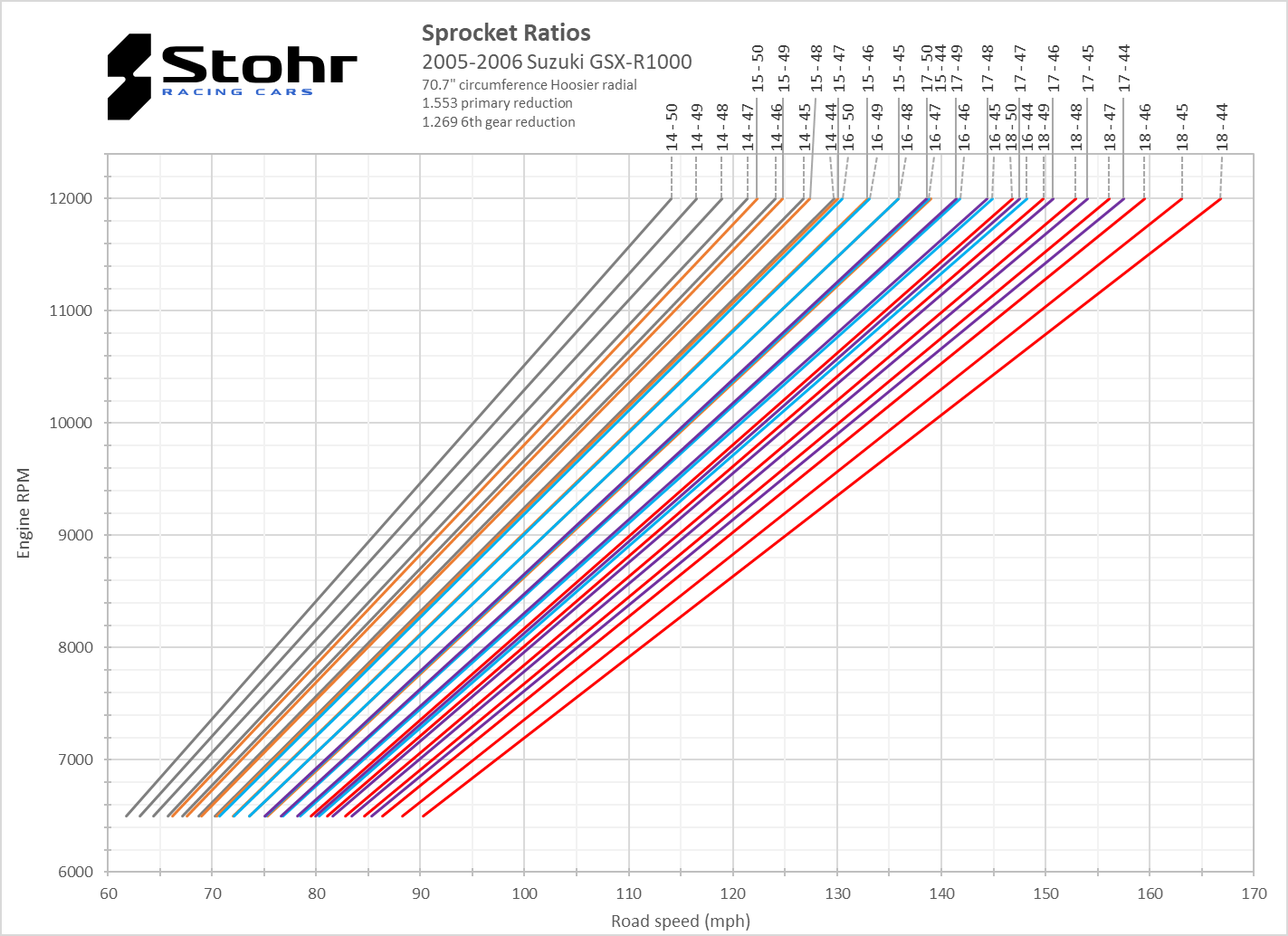

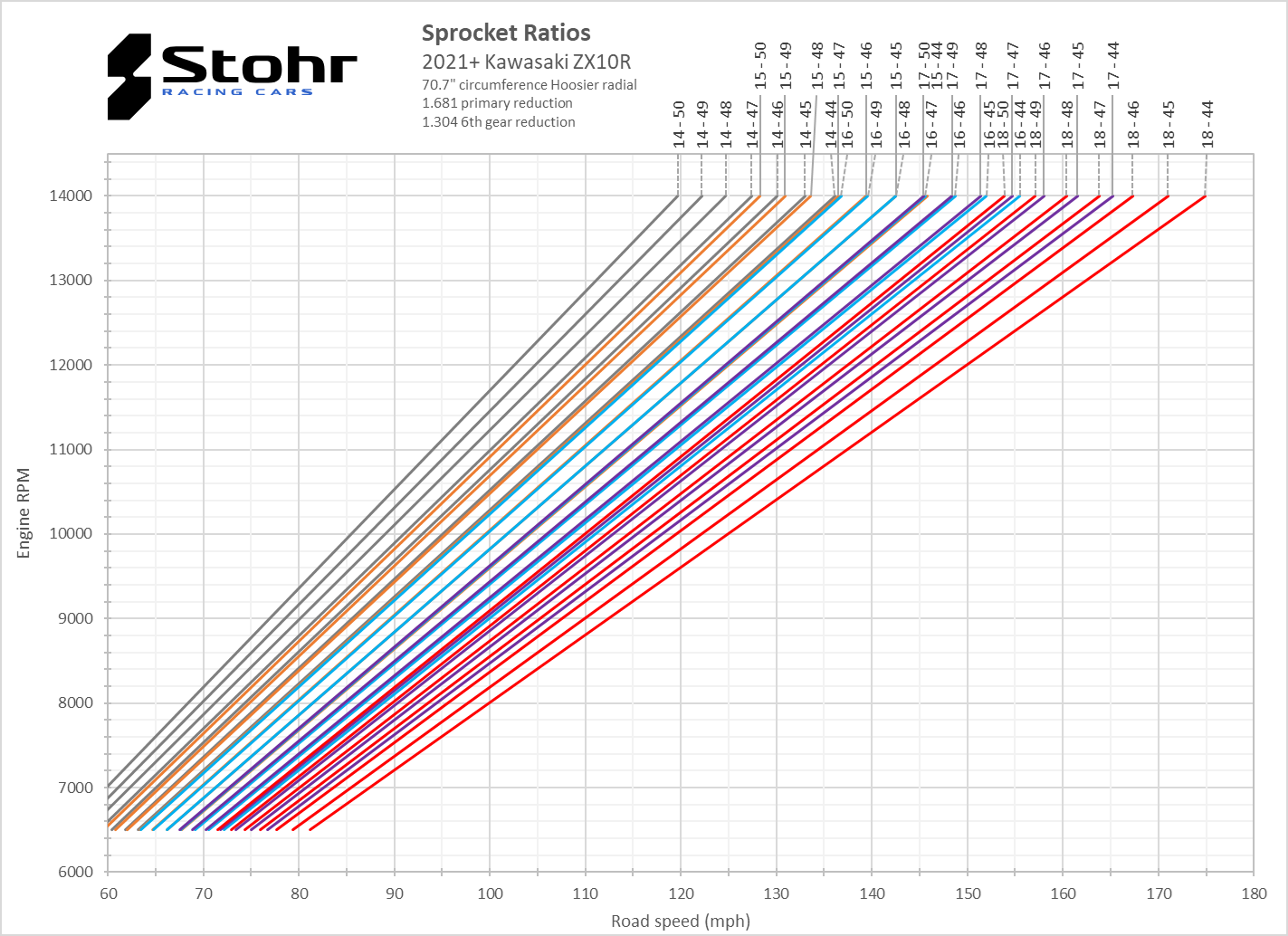

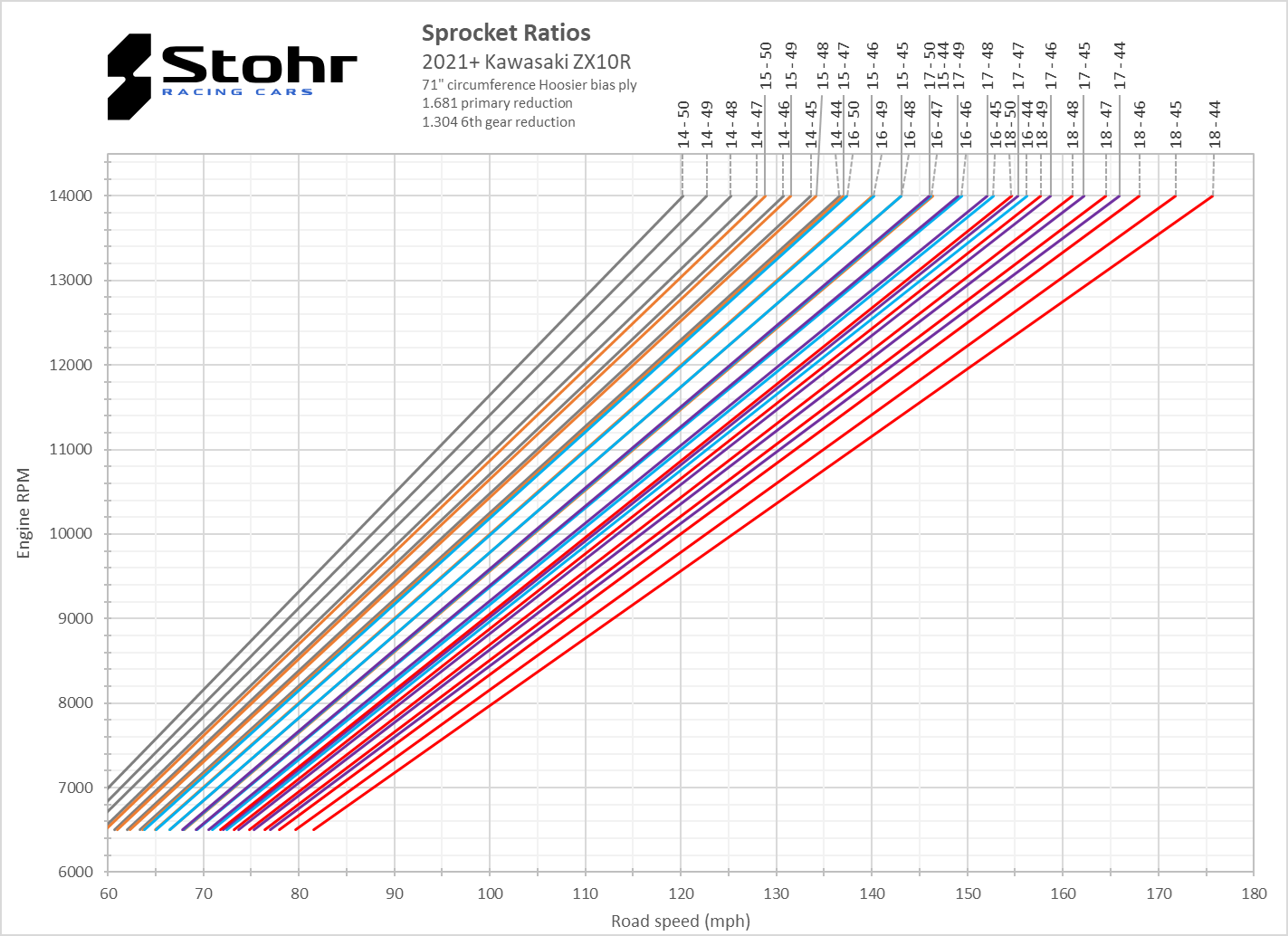

Gearing charts



















Updated on 26 Jun 2024
